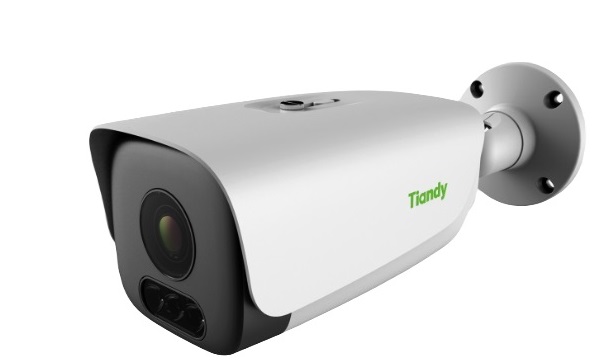

Camera IP hồng ngoại 5.0 Megapixel TIANDY TC-C35LP(I8W/A/E/Y/M/H/2.7-13.5mm/V4.0) – Cảm biến hình ảnh: 1/1.8 inch CMOS. – Độ phân giải: 5.0 Megapixel. – Chuẩn nén hình ảnh: S+265/H.265/H.264/M-JPEG. – Ống kính: 2.7-13.5mm/F1.2~F2.2, motozied lens. – Độ nhạy sáng: Color: 0.0004Lux@ (F1.2, ACG ON), B/W: 0Lux with IR. – Tầm quan sát hồng ngoại: 80m. – Tích hợp micro trên camera. – Hỗ trợ thẻ nhớ tối đa 512GB. – Hỗ trợ 1 cổng vào và 1 cổng ra audio. – Hỗ trợ 2 cổng vào và 1 cổng ra alarm. – Chức năng giảm nhiễu số 3D-DNR. – Chức năng bù ngược sáng BLC, HLC. – Chức năng chống ngược sáng thực WDR 120dB. – Chuẩn ONVIF quốc tế, hỗ trợ tên miền miễn phí. – Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời). – Nguồn điện: DC 12V, PoE. – Vỏ kim loại. Đặc tính kỹ thuật

Camera
Image Sensor	1/1.8 inch CMOS
Signal System	PAL/NTSC
Min. Illumination	Color: 0.0004Lux@ (F1.2, ACG ON), B/W: 0Lux with IR
Shutter Time	1s to 1/100,000s
Day & Night	Dual IR Cut Filter with Auto Switch
Wide Dynamic Range	120dB
Angle Adjustment	Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
Lens
Lens Type	Motorized
Focus	2.7-13.5mm
Lens Mount	Φ14
Aperture	F1.2~F2.2, DC
FOV	Horizontal field of view: 106.9°~48.7°
Illuminator
IR LEDs	4
IR Range	Up to 80m
Wavelength	850nm
White/Warmlight LEDs	3
Compression Standard
Video Compression	S+265/H.265/H.264/M-JPEG
Video Bit Rate	32Kbps~16Mbps
Audio Compression	G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate	8K~48Kbps
Max. Resolution	3072×1728
Main Stream	PAL: 25fps (3072×1728, 2560×1440, 2304×1296) 50fps (1920×1080, 1280×720)
	NTSC: 30fps (3072×1728,2560×1440, 2304×1296), 60fps (1920×1080, 1280×720)
Sub Stream	PAL: 25fps (704×576, 704×288, 640×480, 352×288)
	NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Third Stream	PAL: 25fps(1920×1080, 1280×720, 704×576, 704×288, 640×480, 352×288)
	NTSC: 30fps(1920×1080, 1280×720, 704×480, 704×240, 640×480, 352×240)
Image Setting	Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement	BLC/3D DNR/HLC/Corridor Format
ROI	Support 7 fixed regions of coding
OSD	16×16, 24×24, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 5 Regions
Picture Overlay	Yes
Privacy Mask	Yes, 4 regions
Smart Defog	Yes
Feature
Alarm Trigger	Event Input, Event Output, Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Address Conflict, MAC Address Conflict, FTP Server Exception
Video Analytics	Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Lost, Loitering, Running, Parking, Crowed, Video Abnormal, Audio Abnormal, Heatmap
Early Warning(EW)	Yes
Network
ANR	Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection (Only Support Tiandy ANR NVR)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, MULTICAST, UPnP, FTP, IPV4, NTP, RTSP, SMTP, IGMP, QoS, Multicast
System Compatibility	ONVIF (PROFILE S/T/G/M), SDK, Milestone, CGI, P2P
Remote Connection	≤7
Client	Easy7, EasyLive Plus
Web Version	Web6
Interface
Communication Interface	1 RJ45 10M/ 100M self adaptive Ethernet port
Audio	1/1, Mic in
Alarm	2/1
Reset Button	Yes
On-board storage	Built-in Micro SD card slot, up to 512 GB
General
Web Client Language	17 languages English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebraism, Arabic, Vietnamese, Ukrainian, German
Operating Conditions	-35℃～65℃, 0～95% RH
Power Supply	DC12V±20%/PoE
Power Consumption	MAX: 8.5W (12V) MAX: 10W (PoE)
Protection	IP67
Dimensions	333×114.2×106.6mm
Weight	1.48kg
